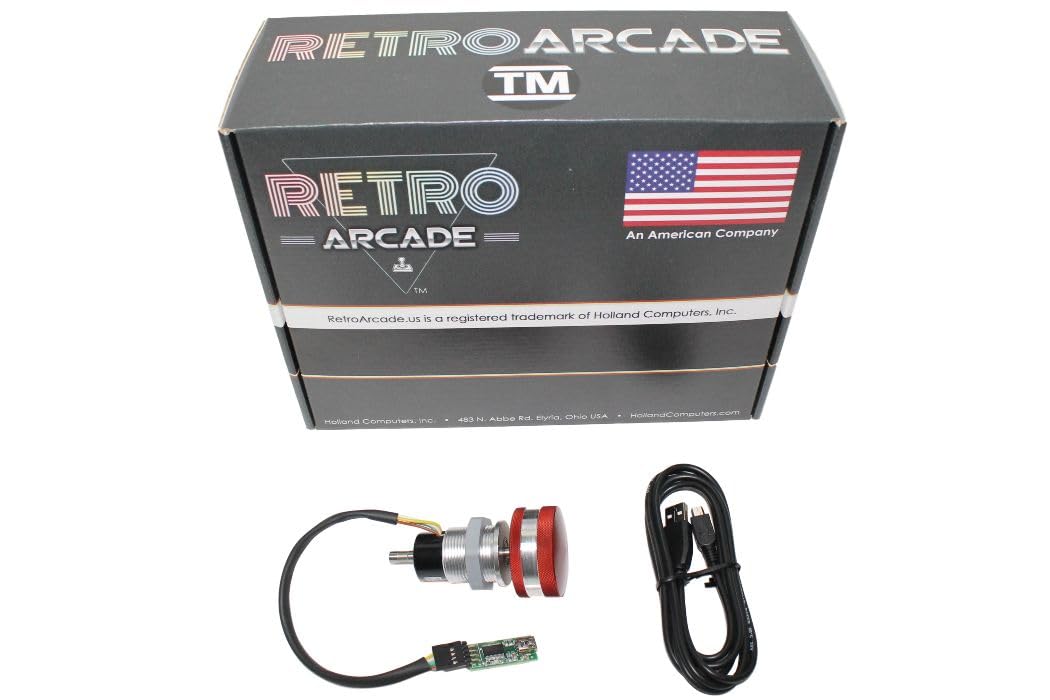

SpinTrack Arcade USB Spinner kit by RetroArcade.us, Perfect for MAME Systems (Red)

• ＋ Easy to use with MAME systems
• ＋ High-quality build
• ＋ Compact design
• ＋ Comes in attractive red color

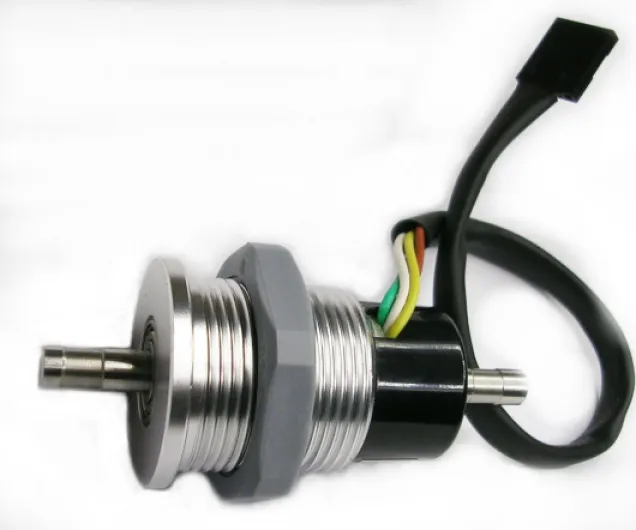

Spintrack arcade usb spinner by retroarcade.us

perfect for mame systems with red knob

Features:

• uses tornado-style spinner tops, the best available anywhere.
• two modes of operation:
  • can be used as a lightweight super high resolution low-inertia trackwheel control as used in "arkanoid"
  • can also be used as a spinner with the addition of one of two sizes of fly-weight to provide inertia giving long spin-times of up to 20 seconds.
• correctly-designed flywheels with mass concentrated at the larger radius.
• ultra-high resolution. unbeatable 1200 pulses per revolution.
• super-tough quality. unit is manufactured by a supplier of encoders for high-speed motor usage and is almost identical to their industrial unit.
• dual sealed ball-bearing races give the ultimate in smooth control.
• one-piece bearing housing/body cnc machined from a solid alloy billet.
• available in two versions, for direct connection to usb, or for connection to our opti-pac or mini-pac interfaces.
• in usb mode, this is the worlds only usb 2.0 spinner. usb 2.0 enables a 16-bit interface and a faster packet-rate than usb 1.1 vital to avoid slowdown or backspin.
• usage not limited to gaming! also suitable for precision control applications, cnc interfacing and other rotary measurement applications.

For opti-pac connection

the 4-pin connector fitted to the device must be cut off and the wires stripped back. they are connected as follows:

• brown - +5 volts
• yellow - x1
• green - x2
• white - ground

Warranty:

90 day doa exchange warranty only. installation of this product requires professional electronic experience, use at your own risk.
