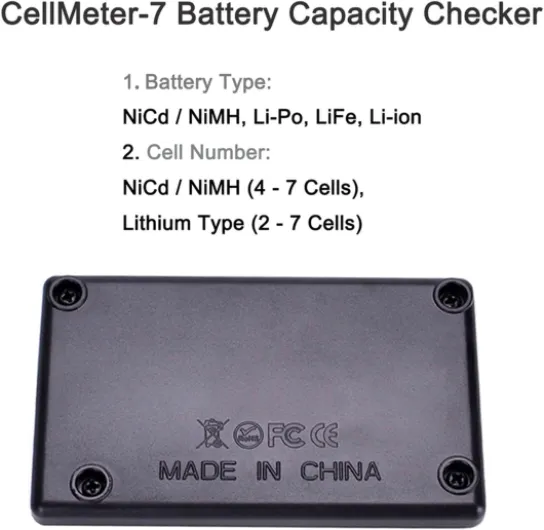

RC CellMeter-7 Digital Battery Capacity Checker Controller Tester for LiPo LiFe Li-ion NiMH Nicd

Specifications

• dimensions (length x width x height) : 84 x 50 x 16mm
• battery type: nicd / nimh, li-po, life, li-ion
• cell number: nicd / nimh (4 - 7 cells), lithium type (2 - 7 cells)

Input cells

• lipo: 2-7 cells
• life: 2-7 cells
• li-lon: 2-7 cells
• nicd: 4-7 cells
• nimh: 4-7 cells

Total voltage

• lipo: √
• life: √
• li-lon: √
• nicd: √
• nimh: √

Total cell battery capacity (0-99%)

• lipo: √
• life: √
• li-lon: √
• nicd: ×
• nimh: ×

Individual battery cell voltage

• lipo: √
• life: √
• li-lon: √
• nicd: ×
• nimh: ×

Lowest cell voltage

• life: √
• li-lon: √
• li-lon: √
• nicd: ×
• nimh: ×

Highest cell voltage

• life: √
• li-lon: √
• li-lon: √
• nicd: ×
• nimh: ×

Voltage difference between highest and lowest cell voltages

• life: √
• li-lon: √
• li-lon: √
• nicd: ×
• nimh: ×

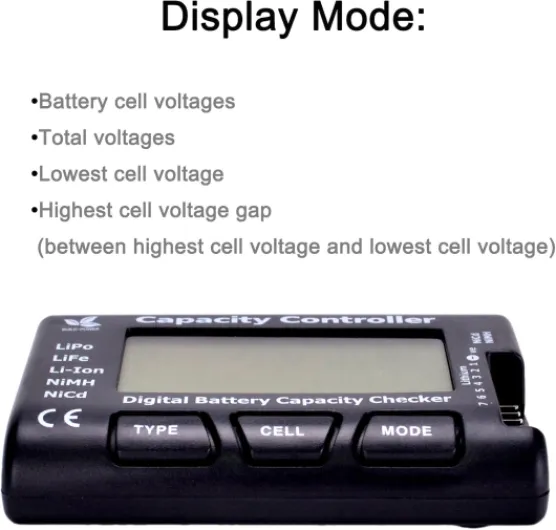

Display mode

• battery cell voltages, total voltages, lowest cell voltage, highest cell voltage.
• voltage gap between highest cell voltage and lowest cell voltage, remaining battery capacity (%).
• press "type" for 3 seconds until you hear 3 'beep' sound, the 'lipo' will blink and the 1s - 6s will blink - shows cell balancing begins balancing mode.
• press "mode", it show out total voltage, maximum voltage "max", minimum voltage "min", and voltage difference "max-min".
• press "cell", you can see the voltage and power of each cell, the total voltage and the total power.
• during balancing mode, the checker will give a bit warmer temperature.
• all the products have been tested before shipping, if you have any problem, please don't hesitate to contact with us.

Package

• 1 piece of version 2 cellmeter-7 digital battery checker
• 1 piece of instruction paper
• (lipo battery and cable in the picture not included)

• Use for lipo life li-ion nimh nicd battery.
• Applies to check the batteries.It's very handy to read your cell voltage.
• High quality, safe and durable,tiny and compact,easy to figure out and to use.
• Cell Number: NiCd / NiMH (4 - 7 Cells), Lithium Type (2 - 7 Cells).
• Display Mode: Battery cell voltages,total voltages,lowest cell voltage, Highest cell voltage gap between highest cell voltage and lowest cell voltage, Remaining battery capacity(%)
